DATABASE E CLASSIFICA SCHEDE VIDEO

In questa tabella sono presenti tutte le schede del database ordinate secondo prestazioni decrescenti (sono inoltre valutate, oltre alla "pure"" prestazioni, anche il consumo nonché le tecnologie accessorie presenti):



2010

Nelle successive tabelle sono presenti le schede presentate nell'anno 2010 ordinate, per ogni marca, unicamente secondo prestazioni decrescenti:

Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Stream processors	Clock GPU/ shader/memoria/ (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)
Hd 6870	Barts pro/40	1700	256	1024 GDDR5	1120	900/900/4200	56	32	134	11.0/3.2	151
Hd 6850	Barts pro/40	1700	256	1024 GDDR5	960	775/775/4000	48	32	128	11.0/3.2	127	1
Hd 5830	Rv870/40	2154	256	1024 GDDR5	1120	800/800/4000	56	16	128	11.0/3.2	175
Hd 5670	Rv850/40	1040	128	512, 1024 GDDR5	400	775/775/4000	20	8	64	11.0/3.2	61	1
Hd 5570	Rv830/40	627	128	512, 1024 GDDR3	400	650/650/1800	20	8	28,8	11.0/3.2	42	1
Hd 5550	Rv830/40	627	128	512, 1024 GDDR3	320	550/550/1800	16	8	28,8	11.0/3.2	39
Hd 5450	Rv810/40	292	64	512, 1024 GDDR3	80	650/650/1600	8	4	12,8	11.0/3.2	20	1
Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Stream processors	Clock GPU/ shader/memoria/ (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)

Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Stream processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)
Gtx 480	Gf100/40	3000	384	1536 GDDR5	480		700/1401/3696	60	48	177,4	11.0/3.2	250
Gtx 470	Gf100/40	3000	320	1280 GDDR5	448		607/1215/3348	56	40	133,92	11.0/3.2	215
Gtx 460	Gf104/40	1950	192/256	768/1024 GDDR5	336		675/1350/3600	56	24/32	86,4/115,2	11.0/3.2	160	1
Gtx 465	Gf100/40	3000	256	1024 GDDR5	352		607/1215/3206	44	32	102,6	11.0/3.2	200	1
Gts 450	Gf106/40	1170	128	1024 GDDR5	192		783/1566/3600	32	16	57,7	11.0/3.2	106
Gt 430	Gf108/40	585	128	1024 DDR3	96		700/1400/1800	8	4	28,8	11.0/3.2	45
Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Stream processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)



2009

Nelle successive tabelle sono presenti le schede presentate nell'anno 2009 ordinate, per ogni marca, unicamente secondo prestazioni decrescenti:

Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors	Clock GPU/ shader/memoria/ (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)
Hd 5970	2*Rv870/40	2*2100	2*256	2*1024 GDDR5	2*1600	725/725/4000	2*80	2*32	256	11.0/3.2	300	1
Hd 5870	Rv870/40	2100	256	1024 GDDR5	1600	850/850/4800	80	32	153,6	11.0/3.2	188	1 2 3
Hd 5850	Rv870/40	2100	256	1024 GDDR5	1440	725/725/4000	72	32	128	11.0/3.2	158	1 2 3 4
Hd 4890	Rv790/55	959	256	1024 GDDR5	800	850/850/3900	40	16	124	10.1/2.1	190	1 2
Hd 5770	Rv840/40	1040	128	1024 GDDR5	800	850/850/4800	40	16	76,8	11.0/3.2	108
Hd 5750	Rv840/40	1040	128	1024 GDDR5	720	700/700/4600	36	16	73,6	11.0/3.2	86	1
Hd 4860	Rv790/55	959	256	512, 1024 GDDR5	640	700/700/3000	32	16	96	10.1/2.1	80
Hd 4770	Rv740/40	514	128	512 GDDR5	640	750/750/3200	32	16	51,2	10.1/2.1	80	1
Hd 4730	Rv770/55	965	128	512 GDDR5	640	750/750/3600	32	8	57,6	10.1/2.1	136
Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors	Clock GPU/ shader/memoria/ (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)





Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)
Gtx 295	GT200b/55	1400	448*2	1792 GDDR3	240*2		576/1242/1998	80*2	32*2	223	10.0/2.1	289	1 2 3 4
Gtx 285	GT200b/55	1400	512	1024 GDDR3	240		648/1476/2484	80	32	159	10.0/2.1	183	1 2 3
Gtx 275	GT200b/55	1400	448	896,1792 GDDR3	240		633/1404/2268	80	32	127	10.0/2.1	219	1 2 3
Gts 250	G92+/55	754	256	512, 1024, 2048 GDDR3	128		738/1836/2200	64	16	70,4	10.0/2.1	150	1 2 3
Gt 240	Gt 215/40	727	128	512, 1024 GDDR3, GDDR5	96		550/1360/3400 (se GDDR5), 2000 (se GDDR3)	32	8	54,4 (se GDDR5), 32 (se GDDR3)	10.1/2.1	86	1 2 3
Gt 220	GT216/40	486	128	512, 1024 GDDR3	48		625/1360/1580	16	8	25,3	10.1/2.1	58
Gt 210	GT218/40	260	64	512 DDR2	16		589/1402/1000	8	4	8	10.1/2.1	30
Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Discussioni forum	Preview (link ad immagine)







2008

Nelle successive tabelle sono presenti le schede presentate nell'anno 2008 ordinate, per ogni marca, unicamente secondo prestazioni decrescenti:

Nome (link a recensione)

Chip/Processo produttivo (nm)

Transistors (milioni)

Bus memoria (bits)

Memoria (MB)

Shader processors

Clock GPU/ shader/memoria/ (MHz)

Texture units

Render back ends

Bandwith (GB/s)

Directx/ Opengl

Consumo (W)

Caratteristiche

Discussioni forum

Preview (link ad immagine)

Hd 4870 x2

2*Rv770/55

2*965

2*256

2048 GDDR5

2*800

750/750/3600

2*40

2*16

2*115,2

10.1/2.1

>300

Shader model 4.1, PCI Express 2.0, CrossFireX, UVD2, Powerplay, Avivo HD

1 2 3

Hd 4850 x2

2*Rv770/55

2*965

2*256

2048 GDDR3

2*800

625/625/2000

2*40

2*16

2*64

10.1/2.1

>308

Shader model 4.1, PCI Express 2.0, CrossFireX, UVD2, Powerplay, Avivo HD

1 2 3

Hd 4870

Rv770/55

965

256

512, 1024 GDDR5

800

750/750/3600

40

16

115,2

10.1/2.1

150

Shader model 4.1, PCI Express 2.0, CrossFireX, UVD2, Powerplay, Avivo HD

1 2 3 4 5 6 7 8 9 10 10 11 12 13 14

Hd 4850

Rv770/55

965

256

512, 1024, 2048 GDDR3

800

625/625/2000

40

16

64

10.1/2.1

110

Shader model 4.1, PCI Express 2.0, CrossFireX, UVD2, Powerplay, Avivo HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Hd 3870 x2

Rv670*2/55

666*2

256*2

512, 1024 GDDR3

320*2

825/825/1800

16*2

16*2

115,2

10.1/2.0

225

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1 2 3 4 5 6 7

Hd 3850 x2

Rv670*2/55

666*2

256*2

512*2 GDDR3

320*2

670/670/1650

16*2

16*2

105,6

10.1/2.0

175

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1

Hd 4830

Rv770/55

965

256

512, 1024 GDDR3

640

575/575/1800

32

16

57,6

10.1/2.1

110

Shader model 4.1, PCI Express 2.0, CrossFireX, UVD2, Powerplay, Avivo HD

1 2 3 4 5 6

Hd 4670

Rv730/55

541

128

256, 512, 1024 GDDR3/GDDR4

320

750/750/(1800/2000)

32

8

28,8/32

10.1/2.1

59

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1 2 3 4 5 6 7 8

Hd 4650

Rv730/55

541

128

512, 1024 DDR2

320

600/600/1000

32

8

16

10.1/2.1

48

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1

Hd 3650

Rv635/55

378

128

256, 512, 1024 DDR2/GDDR3 eventualmente con tecnologia Hypermemory

120

725/725/1600

8

4

25,6

10.1/2.1

<75

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1 2 3 4 5

Hd 4550

Rv710/55

242

64

256, 512 GDDR3

80

600/600/1600

8

4

12,8

10.1/2.1

25

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1 2 3

Hd 3470

Rv620/55

181

64

256, 512 GDDR3

40

800/800/1900

4

4

8

10.1/2.1

<75

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1

Hd 4350

Rv710/55

242

64

256, 512 DDR2

80

600/600/1000

8

4

8

10.1/2.1

25

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1

Hd 3450

Rv620/55

181

64

128, 256, 512 DDR2

40

600/600/1000

4

4

15,2

10.1/2.1

<75

Shader model 4.1, PCI Express 2.0, Avivo HD, PowerPlay, CrossFireX

1 2

Nome (link a recensione)

Chip/Processo produttivo (nm)

Transistors (milioni)

Bus memoria (bits)

Memoria (MB)

Shader processors

Clock GPU/ shader/memoria/ (MHz)

Texture units

Render back ends

Bandwith (GB/s)

Directx/ Opengl

Consumo (W)

Caratteristiche

Discussioni forum

Preview (link ad immagine)





Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Caratteristiche	Discussioni forum	Preview (link ad immagine)
9800 gx2	G92*2/65	754*2	256*2	512*2 GDDR3	128*2		600/1500/2000	32*2	16*2	128	10.0/2.1	197	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3
Gtx 280	GT200/65	1400	512	1024 GDDR3	240		602/1296/2214	80	32	142	10.0/2.1	236	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1
Gtx 260	GT200/(65/55)	1400	448	896 GDDR3	192, 216		576/1242/1998	64	28	112	10.0/2.1	182	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3 4 5 6
9800 gtx+	G92+/55	754	256	512 GDDR3	128		738/1836/2200	64	16	70,4	10.0/2.1	168	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3 4 5 6 7 8 9 10
9800 gtx	G92/65	754	256	512, 1024 GDDR3	128		675/1688/2200	32	16	70,4	10.0/2.1	168	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3 4 5 6
9800 gt	G92/55	754	256	256, 512, 1024 GDDR3	112		600/1500/1800	56	16	57,6	10.0/2.1	105	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3 4 5 6 7 8 9 10
9600 gt	G94/65-55	505	256	256/512/1024 GDDR3	64		650/1625/1800	32	16	57,6	10.0/2.1	95	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2 3 4 5 6 7
9600 gso	G92/65	754	192	384/512/768 GDDR3	96		550/1375/1600	48	12	38,4	10.0/2.1	95	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1
8800 gs	G92/65	754	192	384 GDDR3	96		550/1375/1600	48	12	38,4	10.0/2.1	95	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	-
9500 gt	G96/65	314	128	256, 512, 1024 GDDR3	32		550/1400/1600	16	8	25,6	10.0/2.1	50	Shader model 4.0, PCI Express 2.0 e PCI, VP2, SLI, Lumenex Engine	1
9400 gt	G96/65	314	128	256, 512, 1024 DDR2	16		500/1400/800	8	8	12,8	10.0/2.1	50	Shader model 4.0, PCI Express 2.0, VP2, SLI, Lumenex Engine	1 2
9300 gs	G86/65	210	64	256 DDR2	16		450/800/900	8	8	6,4	10.0/2.1	<50	Shader model 4.0, VP2, SLI, Lumenex Engine	1
Nome (link a recensione)	Chip/Processo produttivo (nm)	Transistors (milioni)	Bus memoria (bits)	Memoria (MB)	Shader processors		Clock GPU/ shader/memoria (MHz)	Texture units	Render back ends	Bandwith (GB/s)	Directx/ Opengl	Consumo (W)	Caratteristiche	Discussioni forum	Preview (link ad immagine)



2007

Nelle successive tabelle sono presenti le schede presentate nell'anno 2007

ordinate, per ogni marca, unicamente secondo prestazioni decrescenti:

Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Vertex shaders (versione)

Pixel shaders (versione)

Rops

Banda passante

Fsaa

Filtro anisotropico

Caratteristiche

Discussioni forum

Preview (link ad immagine)

Hd 2900 xt

R600/80 nm

Pci express

512/1024 MB Gddr3/Gddr4

740/1650 (740/2000 se con memorie Gddr4) MHz

512 bits

320 stream processors (740 MHz)

16

106/128 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO

1

Hd 3870

Rv670/55 nm

Pci express

512 MB Gddr4

775/2250 MHz

256 bits

320 stream processors (775 MHz)

16

72 GB

2X/4X/8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10.1, Opengl 2.0, AVIVO, UVD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

Hd 3850

Rv670/55 nm

Pci express/Agp

256/512 MB Gddr3

670/1650 MHz

256 bits

320 stream processors (670 MHz)

16

52,8 GB

2X/4X/8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10.1, Opengl 2.0, AVIVO, UVD

1 2 3 4 5 6 7 8 9 10

Hd 2900 pro

R600/80 nm

Pci express

512 MB Gddr3

600/1600 MHz

512 bits

320 stream processors (600 MHz)

16

102,4 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO

1

X1950 gt

Rv570/80 nm

Pci express/Agp

256/512 MB Gddr3

500/1200 MHz

256 bits

8 (3.0)

36 (3.0)

12

38,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6

Hd 2600 xt

Rv630/65 nm

Pci express/Agp

256/512 MB Gddr3/Gddr4

800/2200 (800/1600 se con memorie Gddr3) MHz

128 bits

120 stream processors (800 MHz)

4

35,2/25,6 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO, UVD

1 2 3 4 5 6 7 8 9 10 11 12

Hd 2600 pro

Rv630/65 nm

Pci express

256/512 MB Ddr2/Gddr3

600/1000 (600/1600 se con memorie Ddr2) MHz

128 bits

120 stream processors (600 MHz)

4

16 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO, UVD

1

Hd 2400 xt

Rv610/65 nm

Pci express/Agp

128/256/512 MB Gddr3

700/1600 MHz

64 bits

40 stream processors (700 MHz)

4

12,8 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO, UVD

1

X1550

Rv515/90 nm

Pci express/Agp

256/512 MB Gddr2/Ddr2 (eventualmente sino a 512 MB su memoria di sistema)

550/800 MHz

64/128 bits

2 (3.0)

4 (3.0)

4

6,4/12,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5

Hd 2400 pro

Rv610/65 nm

Pci express/Agp

128/256/512 MB Ddr2/Gddr3 (evemtualmente sino ad 1 GB su memoria di sistema)

525/800 MHz

64 bits

40 stream processors (525 MHz)

4

6,4 GB + 8 GB

2X/4X8X MS 4X/6X/8X/ 12X/16X CFAA

2X, 4X, 8X, 16X

Shader Model 4.0, Directx 10, Opengl 2.0, AVIVO, UVD

1 2 3

X1050

Rv570/110 nm

Pci express/Agp

128/256 MB Ddr/Ddr2 (eventualmente sino a 512 MB su memoria di sistema)

400/500 (se con memoria Ddr) 325/666 (se con bus a 64 bits) 400/666 (se con memoria Ddr2) MHz

64/128 bits

2 (2.0)

4 (2.0)

4

8/5,3/10,7 + 8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader 2.0, Videoshader, Hyper-Z III, Truform II

1

Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Vertex shaders (versione)

Pixel shaders (versione)

Rops

Banda passante

Fsaa

Filtro anisotropico

Caratteristiche

Discussioni forum

Preview (link ad immagine)





Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Stream processors/ Clock shader unit

Banda passante

Fsaa

Filtro anisotropico

Alimentazione

Caratteristiche

Discussioni forum

Preview (link ad immagine)

8800 ultra

G80/90 nm

Pci express

768 MB Gddr3

612/2160 MHz

384 bits

128/1500 MHz

103,7 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

2 x 6 pin

PureVideo HD, Lumenex Engine Technology, Quantum Effects, CUDA, Shader Model 4.0, DirectX 10

1

8800 gt

G92/65 nm

Pci express

256/512/ 1024 MB Gddr3

600/1800 MHz

256 bits

112/1500 MHz

57,6 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

1 x 6 pin

PureVideo HD, Lumenex Engine Technology, Quantum Effects, CUDA, Shader Model 4.0, DirectX 10, VP 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

8600 gts

G84/80 nm

Pci express

256 MB Gddr3

675/2000 MHz

128 bits

32/1450 MHz

32 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

1 x 6 pin

Purevideo hd, VP2, Shader Model 4.0, DirectX 10, Opengl 2.0

1 2 3 4 5 6 7 8 9 10 11

8600 gt

G84/80 nm

Pci express

256/512/1024 MB Gddr3/Ddr2

540/1400 (540/1000 se con memoria Ddr2) MHz

128 bits

32/1180 MHz

22,4 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

-

Purevideo hd, VP2, Shader Model 4.0, DirectX 10, Opengl 2.0

1 2 3 4 5 6 7 8 9 10 11 12

8500 gt

G86/80 nm

Pci express

256/512 MB Ddr2/ Gddr2/ Gddr3

450/800 MHz

128 bits

16/900 MHz

12,8 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

-

Purevideo hd, VP2, Shader Model 4.0, DirectX 10, Opengl 2.0

1 2 3 4 5 6 7 8 9 10

8400 gs

G86/80 nm

Pci express

256 MB Ddr2/Gddr2

450/800 MHz

64 bits

16/1200 MHz

6,4 GB

2X/2XQ/4X/8X/ 8xQ/16x/16xQ

2X, 4X, 8X, 16X

-

Purevideo, VP2, Shader Model 4.0, DirectX 10, Opengl 2.0

1 2 3 4 5 6

Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Vertex shaders (versione)

Pixel shaders (versione)

Banda passante

Fsaa

Filtro anisotropico

Alimentazione

Caratteristiche

Discussioni forum

Preview (link ad immagine)





< 2007

Nelle successive tabelle sono presenti le schede presentate sino al 2007

ordinate, per ogni marca, unicamente secondo prestazioni decrescenti:

Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Vertex shaders (versione)

Pixel shaders (versione)

Rops

Banda passante

Fsaa

Filtro anisotropico

Caratteristiche

Discussioni forum

Preview (link ad immagine)

X1950 xtx - X1950 crossfire edition

R580/90 nm

Pci express

512 MB Gddr4

650/2000 MHz

256 bits

8 (3.0)

48 (3.0)

16

64 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4

X1900 xtx

R580/90 nm

Pci express

512 MB Gddr3

650/1550 MHz

256 bits

8 (3.0)

48 (3.0)

16

49,6 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

X1900 xt - X1900 crossfire edition

R580/90 nm

Pci express

256/512 MB Gddr3

625/1450 MHz

256 bits

8 (3.0)

48 (3.0)

16

46,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 2

X1950 xt 256 MB

R580/90 nm

Pci express/Agp

256 MB Gddr3

625/1800 MHz

256 bits

8 (3.0)

48 (3.0)

16

57,6 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6

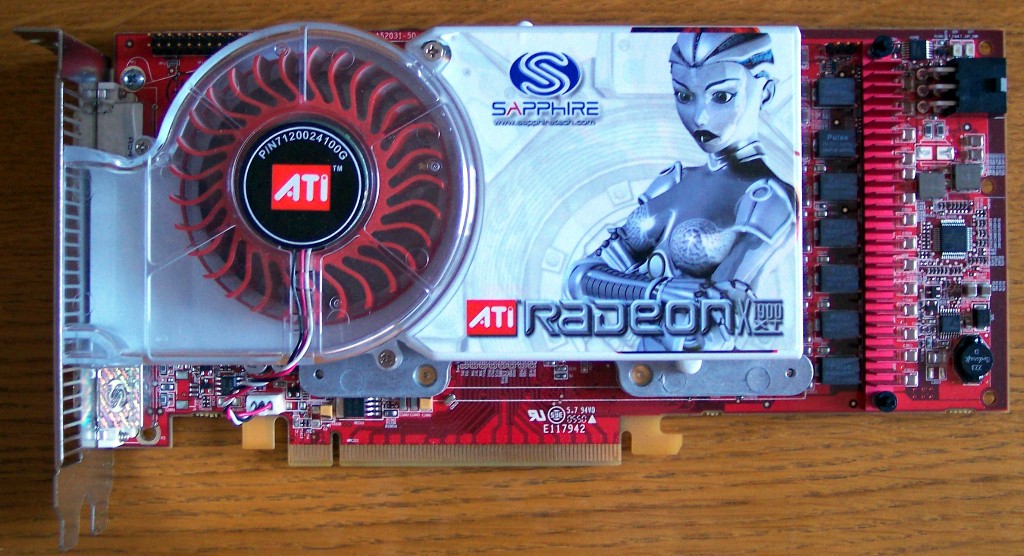

X1800 xt

R520/90 nm

Pci express

256/512 MB Gddr3

625/1500 MHz

256 bits

8 (3.0)

16 (3.0)

16

48 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

X1950 pro

Rv570/80 nm

Pci express/Agp

256/512 MB Gddr3/ Gddr4

575/1380 MHz

256 bits

8 (3.0)

36 (3.0)

12

44,1 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

X1900 gt

R580/90 nm

Pci express

256 MB Gddr3

575/1200 MHz

256 bits

8 (3.0)

36 (3.0)

12

38,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13

X1900 all in wonder

R580/90 nm

Pci express

256 MB Gddr3

500/960 MHz

256 bits

8 (3.0)

48 (3.0)

16

30,7 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1

X1800 gto2

R520/90 nm

Pci express

512 MB Gddr3

500/1000 MHz

256 bits

8 (3.0)

16 (3.0)

16

32 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3

X1800 xl

R520/90 nm

Pci express

256 MB Gddr3

500/1000 MHz

256 bits

8 (3.0)

16 (3.0)

16

32 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11

X1650 xt

Rv560/80 nm

Pci express/Agp

256 MB Gddr3

575/1350 MHz

128 bits

8 (3.0)

24 (3.0)

8

21,6 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6

X850 xt pe

R480/130 nm

Pci express/Agp

256 MB Gddr3

540/1180 MHz

256 bits

6 (2.0)

16 (2.0b)

16

37,7 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4

X850 xt

R480/130 nm

Pci express/Agp

256 MB Gddr3

520/1080 MHz

256 bits

6 (2.0)

16 (2.0b)

16

34,5 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

X800 xt pe

R420/130 nm

Pci express/Agp

256 MB Gddr3

520/1120 MHz

256 bits

6 (2.0)

16 (2.0b)

16

35,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5

X1800 gto

R520/90 nm

Pci express

256/512 MB Gddr3

500/1000 MHz

256 bits

8 (3.0)

12 (3.0)

16

32 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12

X800 xt

R420/130 nm

Pci express/Agp

256 MB Gddr3

500/1000 MHz

256 bits

6 (2.0)

16 (2.0b)

16

32 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

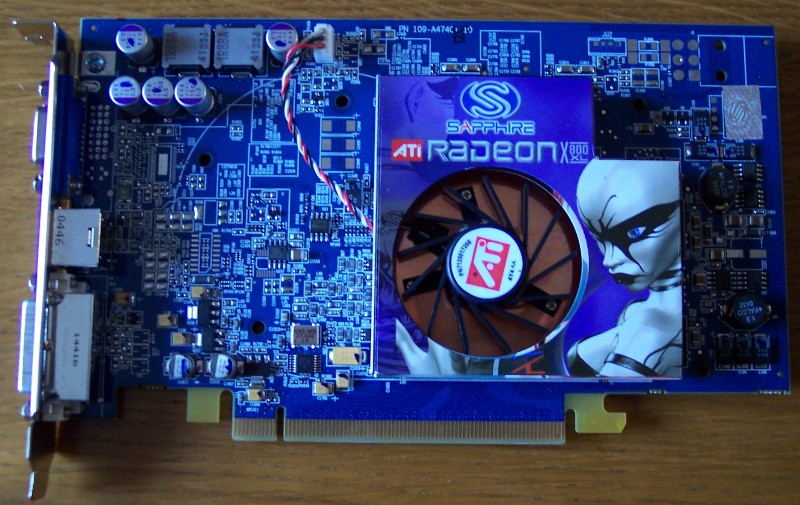

X800 xl

R430/110 nm

Pci express/Agp

256/512 MB Gddr3

400/1000 MHz

256 bits

6 (2.0)

16 (2.0b)

16

32 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

X800 gto - X800 gto2

R480/130 nm

Pci express/Agp

256 MB Gddr3

400/980 MHz

256 bits

6 (2.0)

12 (2.0b)

12

31,3 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

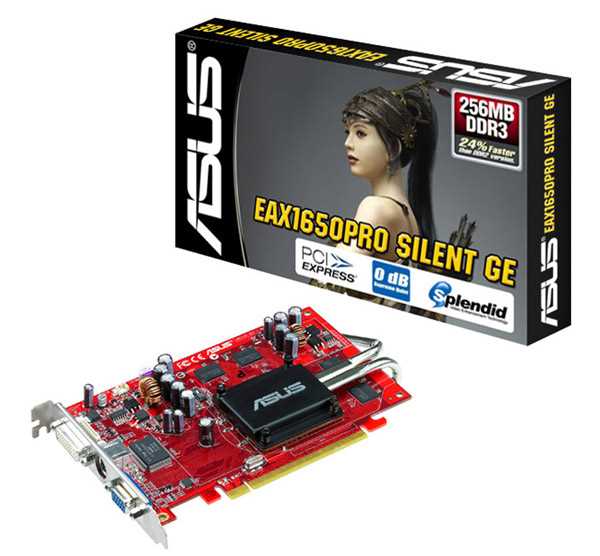

X1650 pro

Rv530/90 nm - Rv535/80 nm

Pci express/Agp

256/512 MB Gddr3/Ddr2

600/1400 (590/800 nelle versioni con memoria Ddr2) MHz

64/128 bits

5 (3.0)

12 (3.0)

4

6,4/11,2 /12,8/22,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

X800 pro

R420/130 nm

Agp

256 MB Gddr3

475/900 MHz

256 bits

6 (2.0)

12 (2.0b)

12

28,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

X1600 xt

Rv530/90 nm

Pci express/Agp

256 MB Gddr3

590/1380 Mhz

128 bits

5 (3.0)

12 (3.0)

4

22 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12

X1300 xt

Rv535/80 nm

Pci express/Agp

256/512 MB Ddr2/Gddr3

500/800 MHz

128 bits

5 (3.0)

12 (3.0)

4

12,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2

X1600 pro

Rv530/80 nm

Pci express/Agp

256/512 MB Ddr2/Gddr3

500/780 MHz

128 bits

5 (3.0)

12 (3.0)

12

12,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

X1600 pro hm 512 MB

Rv530/90 nm

Pci express/Agp

256 MB Ddr2 (sino a 512 MB su memoria di sistema)

500/780 MHz

128 bits

5 (3.0)

12 (3.0)

12

12,8 + 8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

-

9800 pro

R350 - R360/150 nm

Agp

128/256 MB Ddr

380/680 MHz

256 bits

4 (2.0)

8 (2.0)

8

21,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

SmartShader 2.1, HyperZ III+, SmoothVision 2.1, VideoShaderm HydraVision

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103

X700 pro

Rv410/110 nm

Pci express/Agp

128/256 MB Gddr3

425/864 MHz

128 bits

6 (2.0)

8 (2.0b)

8

13,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

X700

Rv410/110 nm

Pci express/Agp

128/256/512 MB Ddr/Ddr2/ Gddr2/Gddr3

400/700 MHz

128 bits

6 (2.0)

8 (2.0b)

8

11,2 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader HD, Videoshader HD, Hyper-Z HD

1 2 3 4 5 6 7 8 9 10 11 12

9700 pro

R300/150 nm

Agp

128 MB Ddr

325/620 MHz

256 bits

6 (2.0)

8 (2.0)

8

19,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

SmartShader, HyperZ III, SmoothVision 2.0, VideoShaderm HydraVision

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

X1300 pro

Rv515/90 nm

Pci express/Agp

128/256 MB Ddr2/Gddr3

600/800 MHz

128 bits

2 (3.0)

4 (3.0)

4

12,8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2

X1300

Rv515/90 nm

Pci express/Agp /Pci

128/256 MB Ddr2

450/500 (450/533 se con interfaccia Pci) MHz

64/128 bits

2 (3.0)

4 (3.0)

4

4,3/8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2

X600 pro

Rv380/130 nm

Pci express

128/256 MB Ddr

400/600 MHz

128 bits

2 (2.0)

4 (2.0)

4

9.6 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader 2.0, Videoshader, Hyper-Z III, Truform II

1 2 3 4 5 6 7

9600 xt

Rv360/130 nm

Agp

128/256 MB Ddr

500/600 MHz

128 bits

2 (2.0)

4 (2.0)

4

9,6 GB

2X/4X/6X

2X, 4X, 8X, 16X

HyperZ III+, SmoothVision 2.1, HydraVision, Truform II

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

X1300 hm 512 MB

Rv515/90 nm

Pci express/Agp

128/256 MB Ddr/Ddr2 (sino a 512 MB su memoria di sistema)

450/700 MHz

64 bits

2 (3.0)

4 (3.0)

4

5,6 + 8 GB

2X/4X/6X

2X, 4X, 8X, 16X

Ring Bus Memory Controller, Ultra-Threaded Shader Engine, AVIVO

1 2

9600 pro

Rv350/130 nm

Agp

128 MB Ddr

400/600 MHz

128 bits

2 (2.0)

4 (2.0)

4

9,6 GB

2X/4X/6X

2X, 4X, 8X, 16X

HyperZ III+, SmoothVision 2.1, HydraVision, Truform II

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

X300

Rv370/110 nm

Pci express/Agp

64/128/256 MB Ddr

325/400 MHz

128 bits

2 (1.1)

4 (1.4)

4

6,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

Smartshader 2.0, Videoshader, Hyper-Z III, Truform II

1 2 3 4

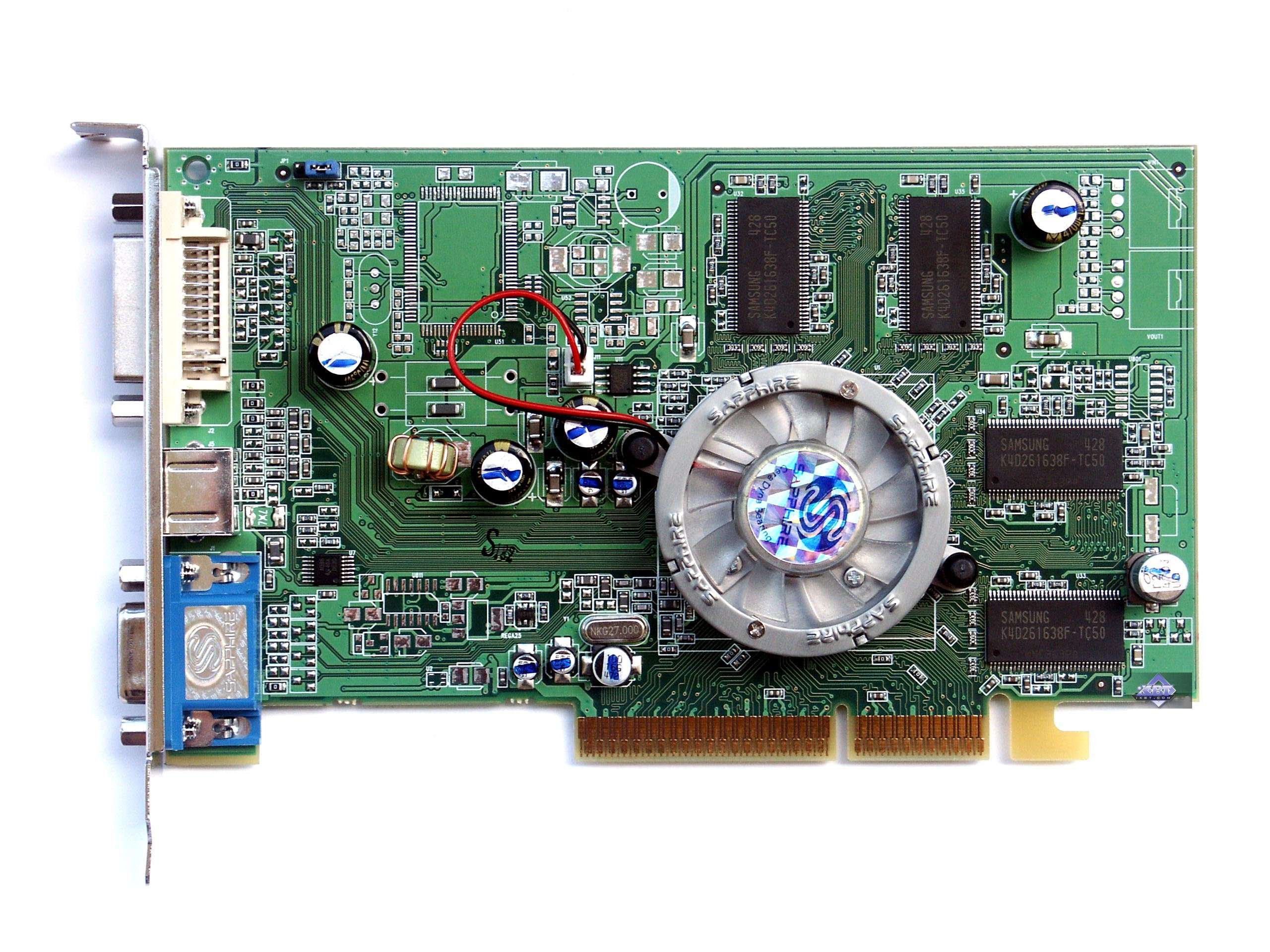

9550

Rv350/130 nm

Agp

128/256 MB Ddr

250/400 MHz

64/128 bits

2 (2.0)

4 (2.0)

4

3,2/6,4 GB

2X/4X/6X

2X, 4X, 8X, 16X

HyperZ III+, SmoothVision 2.1, HydraVision, Truform II

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

9250

Rv280/150 nm

Agp

64/128/256 MB Ddr

240/400 MHz

64/128 bits

2 (1.1)

4 (1.4)

4

3,2/6,4 GB

2X/4X/6X

2X, 4X, 8X

Smartshader Videoshader Hyper-Z Truform

1 2 3 4 5 6 7 8 9 10 11 12

8500 le

R200/150 nm

Agp

64/128 MB Ddr

250/500 MHz

128 bits

2 (1.1)

4 (1.4)

4

8 GB

2X/4X/6X

2X, 4X, 8X

Pixel Tapestry II, Truform, SmoothVision, Hyper-Z II, Charisma Engine II

1 2 3 4

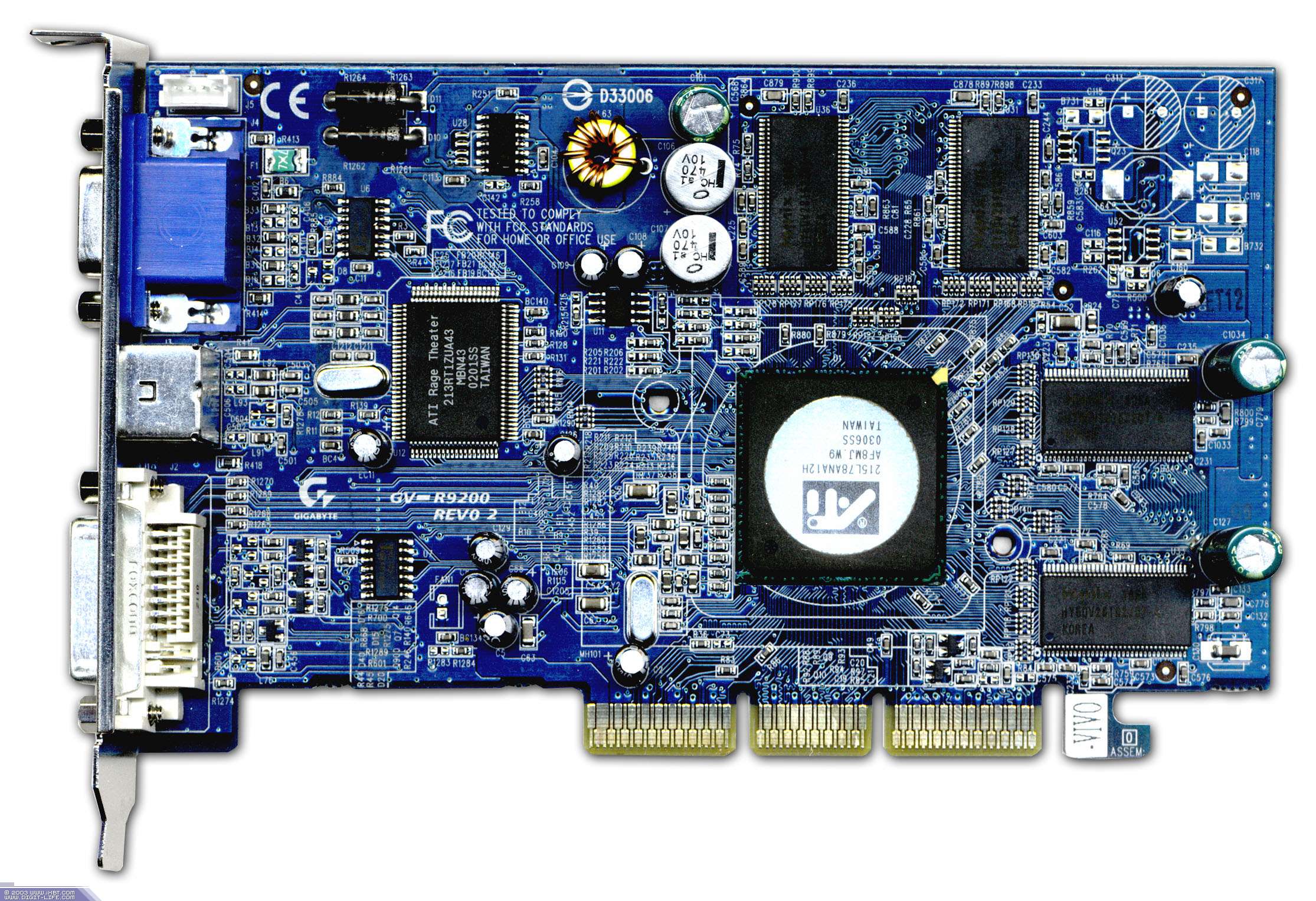

9200

Rv280/150 nm

Agp

64/128/256 MB Ddr

250/400 MHz

128 bits

1 (1.1)

4 (1.4)

4

6,4 GB

2X/4X/6X

2X, 4X, 8X

Pixel Tapestry II, Truform, SmoothVision, Fullstream, Video Immersion II, Hydravision, Hyper-Z II, Charisma Engine II

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

9200 se

Rv280/150 nm

Agp

64/128/256 MB Ddr

240/400 MHz

64 bits

1 (1.1)

4 (1.4)

4

3,2 GB

2X/4X/6X

2X, 4X, 8X

Pixel Tapestry II, Truform, SmoothVision, Fullstream, Video Immersion II, Hydravision, Hyper-Z II, Charisma Engine II

1 2 3 4 5 6 7 8 9

Nome (link a recensione)

Chip/Processo produttivo

Interfaccia

Memoria

Clock chip/memoria

Bus

Vertex shaders (versione)

Pixel shaders (versione)

Rops

Banda passante

Fsaa

Filtro anisotropico

Caratteristiche

Discussioni forum

Preview (link ad immagine)





Nome (link a recensione)	Chip/Processo produttivo	Interfaccia	Memoria	Clock chip/memoria	Bus	Vertex shaders (versione)	Pixel shaders (versione)	Rops	Banda passante	Fsaa	Filtro anisotropico	Caratteristiche	Discussioni forum	Preview (link ad immagine)

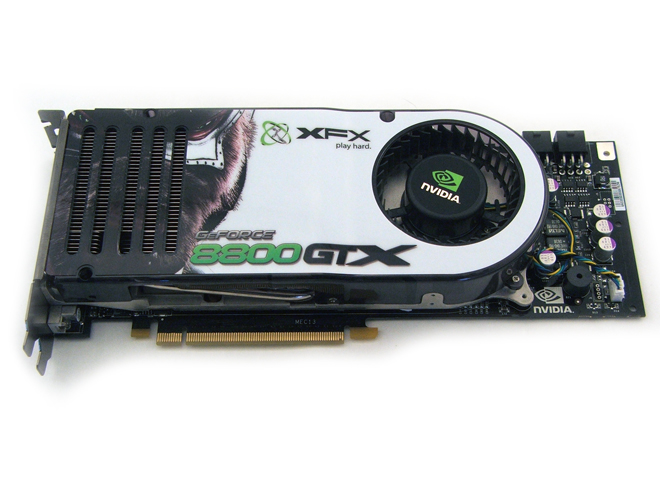

8800 gtx	G80/90 nm	Pci express	768 MB Gddr3	575/1800 MHz	384 bits	128 stream processors (1350 MHz)		24	86,4 GB	2X/2XQ/4X/8X/ 8xQ/16x/16xQ	2X, 4X, 8X, 16X	PureVideo HD, Lumenex Engine Technology, Quantum Effects, CUDA, Shader Model 4.0, DirectX 10	1 2 3 4 5 6 7 8 9
8800 gts	G80/90 (G92/65 nelle versioni da 1024 e 512 MB) nm	Pci express	1024/640/512/ 320 MB Gddr3	500/1600 (650/1940 nelle versioni da 1024 e 512 MB) MHz	320 (256 nelle versioni da 1024 e 512 MB) bits	96 (128 nelle versioni da 1024 e 512 MB) stream processors (1200 MHz (1625 nelle versioni da 1024 a 512 MB))		20 (16 nelle versioni da 1024 e 512 MB)	64 (62,1 nelle versioni da 1024 e 512 MB) GB	2X/2XQ/4X/8X/ 8xQ/16x/16xQ	2X, 4X, 8X, 16X	PureVideo HD, Lumenex Engine Technology, Quantum Effects, CUDA, Shader Model 4.0, DirectX 10	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
7950 gx2	2*G71/90 nm	Pci express	2*512 MB Gddr3	500/1200 MHz	2*256 bits	2*8 (3.0)	2*24 (3.0)	2*16	76,8 GB	2X/2XQ/4X/ 8xS/16X	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14
7900 gtx	G71/90 nm	Pci express	512 MB Gddr3	650/1600 MHz	256 bits	8 (3.0)	24 (3.0)	16	51,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6
7900 gto	G71/90 nm	Pci express	512 MB Gddr3	650/1320 MHz	256 bits	8 (3.0)	24 (3.0)	16	42,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2
7800 gtx 512 MB	G70/110 nm	Pci express	512 MB Gddr3	550/1700 MHz	256 bits	8 (3.0)	24 (3.0)	16	54,4 GB	2X/2XQ/4X /8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12
7950 gt	G71/90 nm	Pci express	512 MB Gddr3	550/1400 MHz	256 bits	8 (3.0)	24 (3.0)	16	44,8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7
7900 gt	G71/90 nm	Pci express	256/512 MB Gddr3	550/1320 MHz	256 bits	8 (3.0)	24 (3.0)	16	42,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

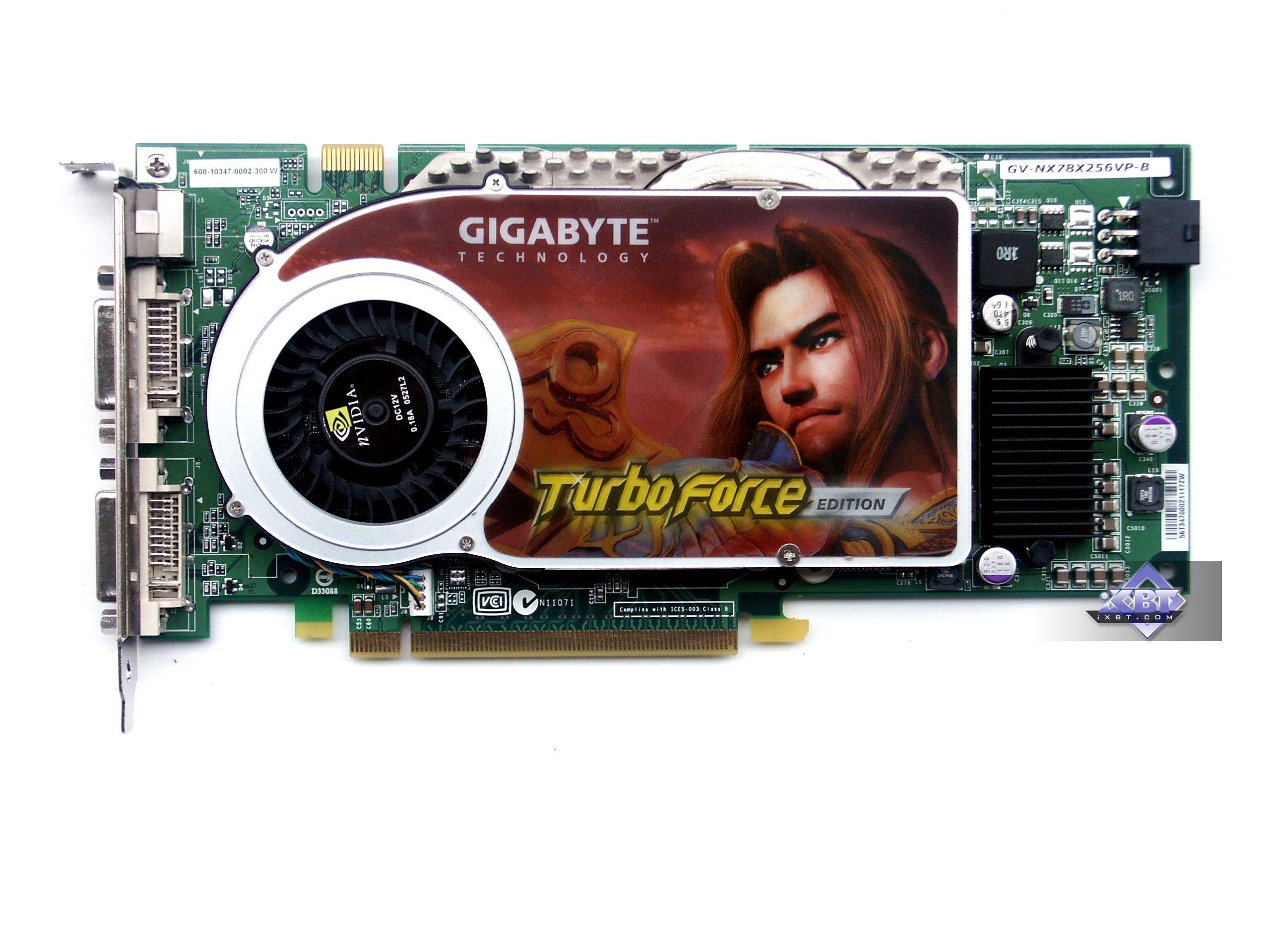

7800 gtx	G70/110 nm	Pci express	256 MB Gddr3	430/1200 Mhz	256 bits	8 (3.0)	24 (3.0)	16	38,4 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
7900 gs	G71/90 nm	Pci express	256/512 MB Gddr3	450/1320 MHz	256 bits	7 (3.0)	20 (3.0)	16	42,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6
7800 gt	G70/110 nm	Pci express	256 MB Gddr3	400/1000 MHz	256 bits	7 (3.0)	20 (3.0)	16	32 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
7800 gs	G70/110 nm	Pci express/Agp	256 MB Gddr3	375/1200 MHz	256 bits	6 (3.0)	16 (3.0)	16	38,4 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFX 4.0, UltraShadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13
7600 gt	G73/110 - 80 nm	Pci express/Agp	256 MB Ddr3/Gddr3	560/1400 MHz	128 bits	5 (3.0)	12 (3.0)	8	22,4 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 4.0, Ultrashadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
6800 ultra extreme	Nv40/130 nm	Pci express/Agp	256 MB Gddr3	450/1100 MHz	256 bits	6 (3.0)	16 (3.0)	16	35,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1
6800 ultra	Nv40/130 nm	Pci express/Agp	256/512 MB Gddr3	400/1100 MHz	256 bits	6 (3.0)	16 (3.0)	16	35,2 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
6800 gt	Nv40/130 nm	Pci express/Agp	256 MB Gddr3	350/1000 MHz	256 bits	6 (3.0)	16 (3.0)	16	32 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
6800 gs	Nv42/110 nm	Pci express	256 MB Gddr3	425/1000 MHz	256 bits	5 (3.0)	12 (3.0)	12	32 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13
6800	Nv40/130 nm	Pci express/Agp	128 MB Ddr	325/700 MHz	256 bits	6 (3.0)	12 (3.0)	12	22,4 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
7600 gs	G73/110 nm	Pci express/Agp	256/512 MB Ddr2/Gddr3	400/800 MHz	128 bits	5 (3.0)	12 (3.0)	8	12,8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 4.0, Ultrashadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
6800 xt	Nv40 - Nv42/130 nm	Pci express	128/256 MB Gddr3	325/700 MHz	256 bits	4 (3.0)	8 (3.0)	8	22,4 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7
6800 le	Nv40/130 nm	Pci express/Agp	128/256 MB Ddr (Gddr3 nella versione Pci express	300/700 (325/600 nella versione Pci express) MHz	256 bits	4 (3.0)	8 (3.0)	8	22,4 (19,2 nella versione Pci express) GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13
6600 gt	Nv43/110 nm	Pci express/Agp	128 MB Gddr3	500/1000 MHz	128 bits	3 (3.0)	8 (3.0)	8	16 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67
5900 ultra	Nv35/130 nm	Agp	128/256 MB Ddr	450/800 MHz	256 bits	3 (2.0)	8 (2.0)	8	27,2 GB	2X/2XQ/ 4XS/6XS	2X, 4X, 8X	CineFx 2.0, Intellisample 2.0, LMA 2	1 2 3 4
7300 gt	G73/110 nm	Pci express	256 MB Ddr2/Gddr3	350/667 MHz	128 bits	4 (3.0)	8 (3.0)	8	10,7 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 4.0, Ultrashadow II, Intellisample 4.0, PureVideo	1 2 3 4
6600	Nv43/110 nm	Pci express/Agp	128/256/ 512 MB Ddr/Ddr2	300/600 (350/800 nelle versioni con memoria Ddr2) MHz	128 bits	3 (3.0)	8 (3.0)	4	9,6 (12,8 nelle versioni con memoria Ddr 2) GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0, PureVideo	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
7300 gs	G72/90 nm	Pci express	128 MB Gddr3 (sino a 512 MB su memoria di sistema)	550/800 MHz	64 bits	3 (3.0)	4 (3.0)	2	6,4 + 8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 4.0, Ultrashadow II, Intellisample 4.0, PureVideo	1 2 3 4 5 6
6600 le	Nv43le/110 nm	Pci express	128/256 MB Ddr/Gddr3	400/500 MHz	128 bits	3 (3.0)	4 (3.0)	2	8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0	1 2 3
7300 le	G72/90 nm	Pci express	256 MB Ddr2 (sino a 512 MB su memoria di sistema)	450/650 MHz	64 bits	3 (3.0)	4 (3.0)	2	5,2 + 8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 4.0, Ultrashadow II, Intellisample 4.0, PureVideo	1 2 3 4

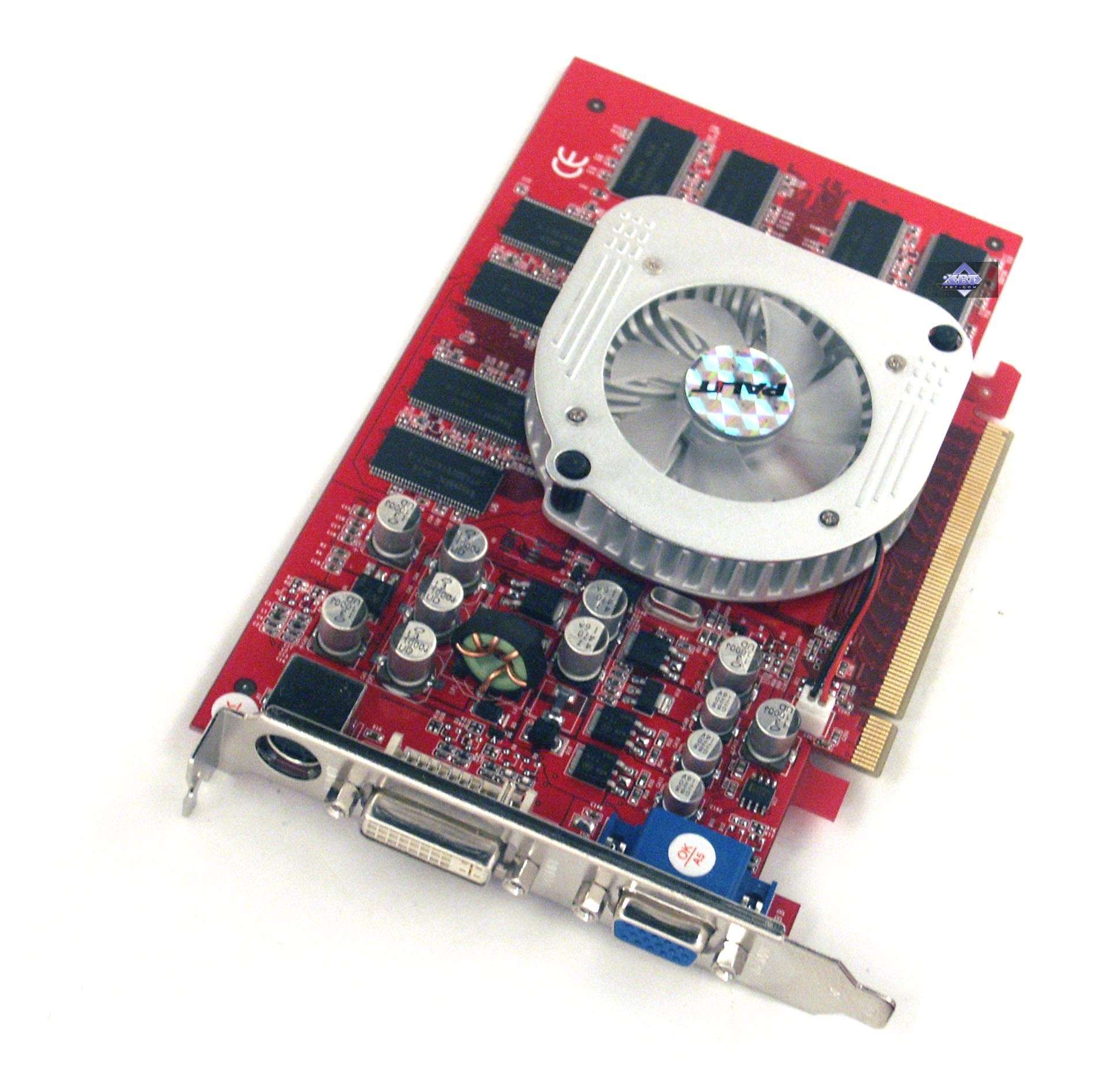

6200	Nv43-v - Nv43-a/110 nm	Pci express/Agp	128 MB Ddr	300/550 MHz	128/64 bits	3 (3.0)	4 (3.0)	2	8,8 GB	2X/2XQ/4X/ 8xS	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0	1 2 3 4 5
5700	Nv36/130 nm	Agp	128/256 MB Ddr	425/550 MHz	128 bits	3 (2.0)	4 (2.0)	4	8,8 GB	2X/2XQ/4XS	2X, 4X, 8X	CineFx 2.0, Ultrashadow, Intellisample 2.0	1 2 3 4 5 6 7 8 9 10 11 12
7100 gs	Nv44/110 nm	Pci express	128/256 MB Ddr2 (sino a 512 MB su memoria di sistema)	350/667 MHz	64 bits	3 (3.0)	4 (3.0)	2	5,3 + 8 GB	2X/2XQ/4X	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0	1
5600	Nv31/130 nm	Agp	128/256 MB Ddr	325/550 MHz	128 bits	3 (2.0)	4 (2.0)	4	8,8 GB	2X/2XQ/4XS/ 6XS/8X	2X, 4X, 8X	CineFx, LMA II, Intellisample, nView, Dvc 3.0	1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
6200 tc 16/32/64	Nv44/110 nm	Pci express/Agp	16/32 MB Ddr/Ddr2 (sino a 128/256 su memoria di sistema)	350/700 MHz	32/64 bits	3 (3.0)	4 (3.0)	2	5,6/2,8 + 8 GB	2X/2XQ/4X	2X, 4X, 8X, 16X	CineFx 3.0, Ultrashadow II, Intellisample 3.0	1 2
5700 le	Nv36/130 nm	Agp	256 MB Ddr	250/400 MHz	128 bits	3 (2.0)	4 (2.0)	4	6,4 GB	2X/2XQ/4XS	2X, 4X, 8X	CineFx 2.0, Ultrashadow, Intellisample 2.0	1 2 3 4 5 6 7
5500	Nv34/150 nm	Agp	128/256 MB Ddr	270/400 MHz	128 bits	2 (2.0)	4 (2.0)	4	6,4 GB	2X/2XQ/4XS	2X, 4X, 8X	CineFx 1.0, Nvidia CG, DVC 3.0, NView	1 2 3 4 5 6 7
Ti4200	Nv25/150 nm	Agp	64/128 MB Ddr	250/500 MHz	128 bits	2 (1.1)	4 (1.3)	4	8 GB	2X/4X	2X, 4X, 8X	nFiniteFX Engine II LMA II, Accuview Antialiasing, nView	1 2
5200	Nv34/150 nm	Agp	64/128 MB Ddr	250/400 MHz	128 bits	2 (2.0)	4 (2.0)	4	6,4 GB	2X/2XQ/4XS	2X, 4X, 8X	CineFx 1.0, DirectX 9, UDA,	1 2 3 4 5 6 7 8 9 10 11 12 13 14
Ti200	Nv20/150 nm	Agp	64/128 MB Ddr	175/400 MHz	128 bits	1 (1.1)	4 (1.1)	4	6,4 GB	2X/4X	2X, 4X, 8X	Directx 8.1, Opengl 1.3	1 2 3 4 5
Mx 440	Nv17/150 nm	Agp	64/128 MB Ddr	270/400 MHz	128 bits	2 pipeline			6,4 GB	2X/4X/4XS	2X	Lma II, Accuview antialiasing, Vpe, Nview	1 2 3 4 5 6 7 8 9 10 11
Mx 400	Nv18/150 nm	Agp	64/128 MB Ddr	250/300 MHz	32/64/ 128 bits	2 pipeline			1,2 GB	2X/4X/4XS	2X	Lma II, Accuview antialiasing, Vpe, Nview	1 2 3 4 5
Riva tnt2 pro	Nv5/220 nm	Agp/Pci	32 MB Sdr	143/166 Mhz	128 bits	2 pipeline			2,7 GB	-	2X	Directx 6, Opengl 1.1	-
Riva tnt2 m64	Nv6//220 nm	Agp/Pci	32 MB Sdr	125/150 Mhz	64 bits	2 pipeline			1,2 GB	-	2X	Directx 6, Opengl 1.1	1
Nome (link a recensione)	Chip/Processo produttivo	Interfaccia	Memoria	Clock chip/memoria	Bus	Vertex shaders (versione)	Pixel shaders (versione)	Rops	Banda passante	Fsaa	Filtro anisotropico	Caratteristiche	Discussioni forum	Preview (link ad immagine)





Link utili:

Informazioni sull'azienda Ati - Informazioni sull'azienda Nvidia

Gpu - Interfaccia Pci - Interfaccia Agp - Interfaccia Pci express - Bus - Shaders - Fsaa - Filtro anisotropico - Memorie GDDR - Transistor

Guida sintetica funzionamento/acquisto Schede Video

Topic "Database schede video" nel forum di Amdplanet



Schede presenti nel database: 154 (81 Ati, 73 Nvidia)

Si ringraziano tutti gli utenti di amdplanet.it per la collaborazione: in particolare webtemplum, nico64, Cesena'88, Aragorn, CIROSAT, nemesys_72, DevilOsky, Sempronio, 'knives', N-Byr0, fabgot, MauriAxel e =Snake=(ITA)=
