Nuovo case da Silverstone

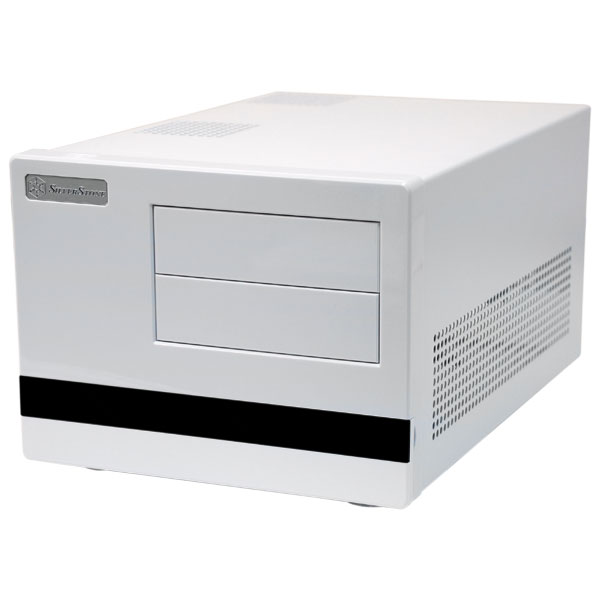

The SG02 was designed to perfectly mirror the performance and the capabilities of SG01-Evolution, with the same ability to handle high-end graphics cards running simultaneously while keeping the smaller dimension intact. SG02’s front panel material is thoughtfully altered to create a softer and settled impression, slightly modified to a simpler and more modern layout. Its tried and true rear chassis is still capable of accepting larger ATX power supply or optical drives than most SFF cases available. The SG01-Evolution was and is still a great addition for any enthusiast looking to get a powerful yet small workstation or gaming machine. Now with SG02, there are more choices to do the same!
Special Features
Modern and cleanly styled SFF chassis
Enhanced cooling layout for high performance
Dual 5.25" and 3.5" drive bays
Micro ATX motherboard & ATX PSU compatible
Full size expansion slots
Specifications:
|
Model |
SST-SG02B (black) |
|
|
SST-SG02W (white) |
||
|
SST-SG02B-W (black with windows) |
||
|
SST-SG02W-W (white, with windows) |
||
|
Material |
ABS & acrylic front panel, 1.5mm aluminum body |
|
|
Motherboard |
Micro ATX |
|
|
Driver Bay |
External |
5.25" x 2 |
|
None |
||
|
Internal |
3.5" x 2 |
|
|
Cooling System |
Front |
-- |
|
Rear |
1 x 80mm fan slot, optional cross-flow fan |
|
|
Side |
1 x 80mm intake fan 2050rpm, 21dBA |
|
|
Top |
1 x 80mm fan slot |
|
|
Bottom |
-- |
|
|
Internal |
-- |
|
|
Expansion Slot |
4 |
|
|
Front I/O Port |
USB2.0 x 2 |
|
|
Power Supply |
Optional standard PS2 (ATX) |
|
|
Net Weight |
2.6 kg |
|
|
Dimension |
270 mm (W) x 212 mm (H) x 393 mm (D) |
|
