Nuovo router wireless e ftp/print server da ASUS (Eng)

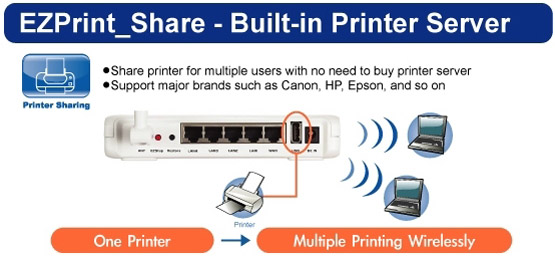

Catering to users who require easy and cost-effective printing at home, ASUS, worldwide leader in Wireless products, has the perfect solution. By current trends, families who have at least one PC are becoming more prevalent, but they usually only have one printer – resulting in printing problems. ASUS’ WL 520GU combines a wireless router with a printer server, thus eliminating printing difficulties while retaining cost effectiveness.
What typically happens at home is:
1) The files are saved onto the USB thumbdrive, then brought over to the PC connected to the printer, where it has to be switched on, then copy the files, and then printed.
2) Files to be printed are sent via E-mail to the PC connected to the PC, where it has to be switched on, receive and download the email attachment, and then print.
3) This presents cost inefficiency, as users would need to pay for cost of a wireless router, as well as the printer server.
Save Money for Ink Cartridge or Photo Quality Paper

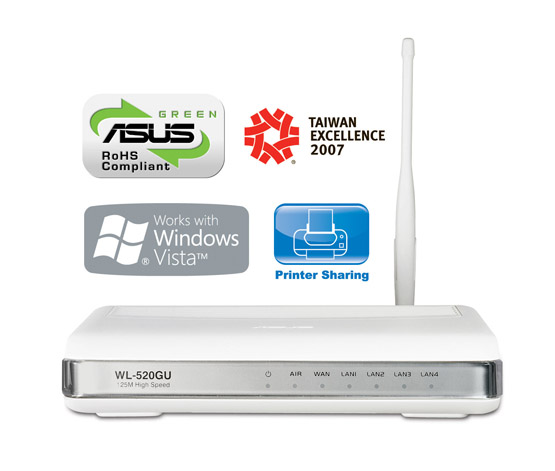

With the WL-520GU, users will be able to achieve the same results without having to spent money on separate products. Able to support major printer brands, the WL-520GU can wirelessly print to the printer, without the need for further purchases. The money saved could then be used for extra ink cartridges or even better quality printing paper for photos printouts.
In addition, the WL-520GU supports the newest WPA2 wireless security protocol – providing security when printing wirelessly.
EZQoS – Bandwidth-On-Demand (BOD)
The WL-520gU is also able to prioritize your needs for Internet bandwidth. With Bandwidth-on-Demand, users can easily allocate bandwidth according to their individual needs by simply clicking on the buttons, such as voice or gaming, and assign more or less bandwidth to streamline multiple network activities (FTP, Games, P2P) to work smoothly at the same time.
Specifications
|
Network Standard |
IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE802.3x, IEEE 802.3u, IEEE 802.1x, IEEE 802.11i, Ipv4, CSMA/CA, CSMA/CD, ICMP |
|
Wi-Fi Enhancement
|
-BroadRangeTM delivers 300% more signal coverage than standard 802.11g -125 High Speed Mode(HSM) technology enables 135% transfer speed compared to standard 11g product |
|
Operating Frequency |
2.4G ~ 2.5GHz |
|
Data Rate |
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps |
|
Operation Channel |
11 for N. America, 14 Japan, 13 Europe (ETSI) |
|
Ethernet Port |
WAN x 1, LAN x 4 RJ45 for 10/100 BaseT |
|
Antenna Support |
Antenna Diversity, 1 internal antenna on board, 1 external detachable antenna |
|
USB Port |
1 x USB2.0 for printer sharing |
|
EZSetup Button |
Automatically SSID and WEP or WPA configuration |
|
LED |
Power x 1, AIR x 1, WAN x 1, LAN x 4 |
|
Security |
64/128-bit WEP, WPA, WPA2, WPA-TKIP/AES, WPA-PSK, WPA-ENT, Radius with 802.1x |
|
Authentication |
MAC address, 802.1x |
|
Firewall & Access Control |
NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN ping control, Single Port and Port Range filter, URL based filter, MAC Address filter |
|
VPN Support |
IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through |
|
Quality of Service |
-EZQoS - BODTM (Bandwidth-On-Demand) -WMM (Wi-Fi multimedia) |
|
Network Management |
Support UPnP, DHCP, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through, WDS |
|
Utilities |
â– Device Discovery: Discover WL-520gU in network and help user to invoke Web Configuration page â– Firmware Restoration: Restore firmware while system enters rescue mode â– EZSetup: Help you to setup wireless and Internet connection easily All PC utilities support Microsoft XP, 2000, Vista |
|
Network Standard |
IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE802.3x, IEEE 802.3u, IEEE 802.1x, IEEE 802.11i, Ipv4, CSMA/CA, CSMA/CD, ICMP |
|
Wi-Fi Enhancement
|
-BroadRangeTM delivers 300% more signal coverage than standard 802.11g -125 High Speed Mode(HSM) technology enables 135% transfer speed compared to standard 11g product |
|
Operating Frequency |
2.4G ~ 2.5GHz |
|
Data Rate |
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps |
|
Operation Channel |
11 for N. America, 14 Japan, 13 Europe (ETSI) |
|
Ethernet Port |
WAN x 1, LAN x 4 RJ45 for 10/100 BaseT |
|
Antenna Support |
Antenna Diversity, 1 internal antenna on board, 1 external detachable antenna |
|
USB Port |
1 x USB2.0 for printer sharing |
|
EZSetup Button |
Automatically SSID and WEP or WPA configuration |
|
LED |
Power x 1, AIR x 1, WAN x 1, LAN x 4 |
|
Security |
64/128-bit WEP, WPA, WPA2, WPA-TKIP/AES, WPA-PSK, WPA-ENT, Radius with 802.1x |
|
Authentication |
MAC address, 802.1x |
|
Firewall & Access Control |
NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN ping control, Single Port and Port Range filter, URL based filter, MAC Address filter |
|
VPN Support |
IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through |
|
Quality of Service |
-EZQoS - BODTM (Bandwidth-On-Demand) -WMM (Wi-Fi multimedia) |
|
Network Management |
Support UPnP, DHCP, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through, WDS |
|
Utilities |
â– Device Discovery: Discover WL-520gU in network and help user to invoke Web Configuration page â– Firmware Restoration: Restore firmware while system enters rescue mode â– EZSetup: Help you to setup wireless and Internet connection easily All PC utilities support Microsoft XP, 2000, Vista |
