Dfi DK 790FX-M2RS per AMD Phenom (Eng)

At the very beginning of 2008, DFI has launched the most excellent C/P ratio, but highest performance AMD quad-core platform, the LANParty DK 790FX-M2RS.
The DK 790FX entirely supports AMD's latest Quad-core processor, the Phenom (FX) series. The AMD’s 790FX, which is a tailor-made gear for enthusiast and aimed at providing the cutting edge performance with the latest Hyper Transport 3.0 for accelerating the CPU bandwidth; LP DK 790FX-M2RS features the highest performance chipset 790FX and SB600 as the Northbridge and Southbridge. Further, DFI brings you an ultra-performance OC platform with the utmost features such like Digital PWM, Bernstein Audio module and advance heat pipe + Transpiper.

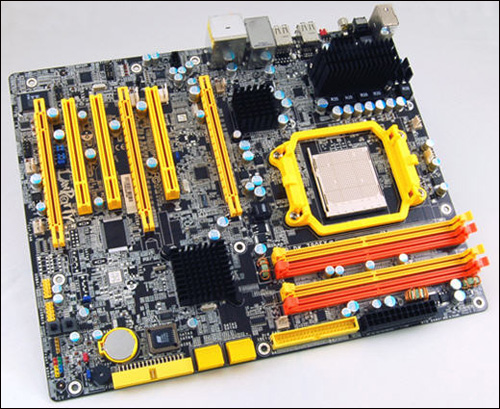

DK 790FX-M2RS

While AMD is about to launched their highest-end quad core CPU, the Phenom series, LANParty DK 790FX-M2RS is the perfect optimized platform for the series.

Specification

  • AMD AM2 socket supports Phenom FX, the quad core CPU.
  • AMD 790FX + SB600 chipset
  • Supports DDR 2 800 memory (Phenom CPU can reach DDRII1066)
  • Supports 3-way crossfire technology
  • Provides 4-phase digital PWM
  • Supports 8ch High-definition audio
  • Provides EZ Switch and CMOS Reloaded
  • 10 x USB ports, 4 x SATA II ports
Power up the Phenom FX CPU: Phenom FX series Processor is the product that AMD spent resources and time to design and develop. The processor based on 65nm processing technology, which has a better reliability, lower power consumption and outstanding performance, truly a best choice for hard-core power users.
AMD 790FX + SB600: After the merged of ATI, 790FX is an “enthusiast-oriented” high-end chipset of AMD. In addition to the excellent OC performance of 790FX, it also provides hard-core gamers the ultra-realistic gaming experience with the latest CrossFireX technology. Aside from this, it is noteworthy that the power consumption of 790FX is relatively lower than others in the market.
DDR2 1066: The system works compatible with DDR2 800 and 1066. It works in DDR2 1066MHz only if Phenom CPU is in use.

3-way CrossFire, the CrossFireX: Supports ATI CrossFireX™ Technology, real dual PCI-E Gen2 x16 or three PCI-E Gen2 x8 connectivity for up to 2 or 3-way latest ATI CrossFireX™ VGA cards and physics card supporting as well, providing the ultra realistic 3D rendering.

The Digital PWM: DFI is the first motherboard manufacturer to replace the ordinary PWM with Digital PWM in the industry. Digital PWM uses components to supply stabilized current, which accommodates enthusiasts ' needs in OC or gaming; moreover, it supplies sufficient current to AMD quad cores CPU. Besides, the heat dissipating fins of the PWM circuit further stabilize current flow to the system.
HyperTransport 3.0 Technology: The HyperTransport™3.0 bus can provide 2x or greater processor-to-I/O bandwidth vs. HyperTransport 1.0. Lower energy consumption, shorter transfer time and bigger bandwidth, HT 3.0 is such a significant breakthrough of data transporting within the system

PCIE Gen 2 Technology: PCIE 2.0 doubles the bus standard's bandwidth from 2.5 Gigabit/s to 5 Gigabit/s, meaning an x32 connector can transfer data at up to 16 GB/s in each direction. It is entirely works compatible with PICE 1.0.

Serial ATA 3.0GBps/ (SATA II): SATA 3.0GBps High speed storage improves transfer rate for improved data access. DK 790FX provides 4 Serial ATA ports with up to 3 Gbps and it supports RAID 0/1/0+1 as well.


High Definition 8 channels Audio: the Realtek ALC885 codec is fully verified by Windows Vista Premium version.
  • Supports Theater level 7.1 channels audio output
  • Provides DAC SNR/ADC SNR ratio at 106dB/101dB
  • Provides the highest sampling rate at 192kHz。
  • Supports 10 DAC Channels and 3 Stereo ADC Channels。
  • Supports the maximum 24bit PCM format for output。
CMOS Reloaded Technology: CMOS Reloaded is creative design of BIOS settings, which is totally first-in-industry to meet enthusiast’s need since 2003. Overclockers can “Backup” and “Load” With CMOS Reloaded for their OC BIOS setting. They don’t bother to start all over again from the very beginning of fine-tune procedure while there’s any failure by OC. Instead, they can save stable O.C. settings during O.C. procedure and thus make OC in a very convenience way.

EZ Jumper:    EZ Clear CMOS is accessible from the rear panel of the system which in turn provides convenience by allowing you to clear the CMOS without having to remove the chassis cover. It bypasses the lengthy process of turning off the system, clearing the CMOS and turning it on again; and yet being able to restore the default values stored in the ROM BIOS.

Japanese Capacitors: DFI LANParty series is strictly incorporates refined components in every motherboard. The Japanese-made highest-end capacitor is one of our insistences. The super long product life cycle, high stability and reliability makes the Japanese-made capacitor became the rock solid part of a super overclocking platform.
